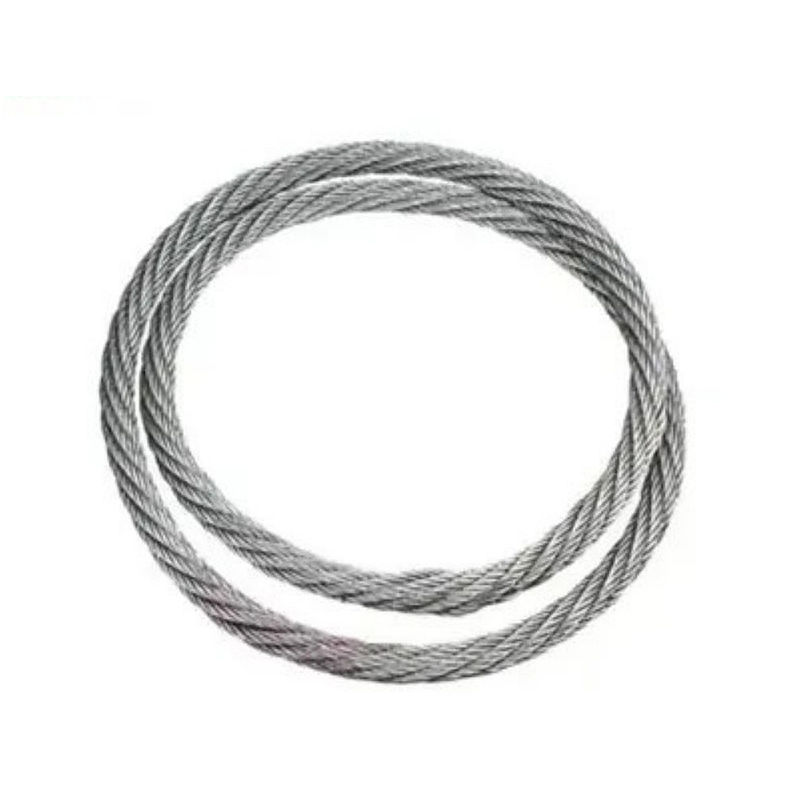

Name: Stainless Steel Wire Rope Sling Galvanized for Lifting ANSI Compliant
Brand: Chongqing Honghao Technology Co., Ltd.
SKU: HH-1857
Price: 775.00 USD
Availability: InStock

Nome da marca:	Honghao
Número do modelo:	HH-1857
MOQ:	1
preço:	$750-800

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Chongqing, China

Grau de aço:

Aço inoxidável

Material:

Aço inoxidável

Resistência à tracção:

1570MPA, 1620MPA, 1670MPA, 1770MPA, 1960MPA

Carga Mínima de Ruptura:

125kn a 30804kn

Carga de perna única:

25kn a 6161kn

Carga de pernas duplas:

45kn a 11089kn (0 ~ 90 °), 35kn a 8625kn (90 ~ 120 °)

Peso:

0,67 kg/m a 180,13kg/m

Strandard:

ASTM, GB, DIN, JIS, AISI, BS

Tratamento de superfície:

Galvanizados, não galvanizados

Raio de dobra:

≥1,5 dia

Circunferência da tipóia:

≥50 vezes de diâmetro

Fator de segurança:

5 (≤60 mm), 6,31-0.022d (60-150 mm), ≥3 (> 150 mm)

Comprimento de embalagem:

1000m, 500m, 300m, 200m Rolls

Tolerância:

± 1%

Serviço de processamento:

Flexão

Destacar:

stainless steel wire rope sling

galvanized lifting wire rope

ANSI compliant steel rope

Descrição do produto

Endless Fiber Core Wire Rope Sling Stainless Steel Cable

Laid to Bending Service Compliant with ANSI Standards

Product Specifications

Steel Grade	Stainless Steel
Standard	AISI
Type	Galvanized
Application	Hanging lamp, pergola, flagpole, clothesline, etc.
Material	Stainless Steel / High Carbon Steel
Delivery Time	15-21 days
Tensile Strength	1570MPA, 1620MPA, 1670MPA, 1770MPA, 1960MPA

Product Features

Available in galvanized or stainless steel construction
High tensile strength with good flexibility and low elongation
Widely used in conveyor belt systems and lifting applications
Minimum breaking load is 5 times the working load
Compliant with safety standards including GB/T30587-2014
Special design for limited space lifting applications

Technical Specifications

ITEM No.	Min. Breaking Load (kN)	Single Leg Working Load (kN)	Double Legs Working Load (kN)	Weight (kg/m)
WJT15	125	25	45	0.67
WJT18	181	36	65	0.97
WJT21	246	49	88	1.33
WJT24	321	64	116	1.72
WJT30	503	101	181	2.70

* Complete specifications available upon request

Product Images

Packing & Delivery

Wrapped in plastic reel or wooden reel, then placed on pallets or in wooden boxes, or as per customer's requirements.

Frequently Asked Questions

Who are we?

We are based in Chongqing, China, with over 15 years of experience in international business, serving customers worldwide including North America, Eastern Asia, and Southeast Asia.

How do we guarantee quality?

We conduct pre-production samples before mass production and final inspection before shipment to ensure product quality.

What services do we provide?

We accept various delivery terms (FOB, CFR, CIF, EXW) and payment methods (USD, EUR) with support in English and Chinese.
